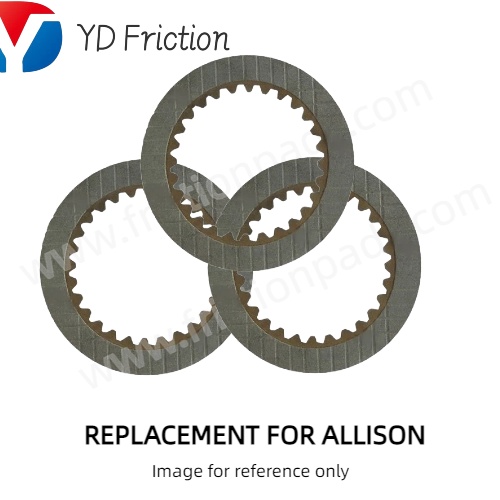

Paper & Graphite Friction Discs for ALLISON Transmission (Overhaul Kit)
Description
Package Information
Inquiry
High-Performance Paper Friction Discs
Nantong Yida supplies a comprehensive range of non-asbestos Paper and Graphite friction discs designed for ALLISON automatic transmissions. Our materials ensure smooth shifting and extended clutch life for on-highway and off-highway applications.
Material Type: High-coefficient Paper / Graphite (PA/GR)
Application: AT, MT, HT, and CLBT Series.
Partial Part Number List:
| OEM Part No. | Material | Teeth | Dimensions (mm) |
|---|---|---|---|
| 23041097 | Paper (PA) | IT60 | 207.3 x 154.4 x 2.6 |
| 23042197 | Paper (PA) | IT42 | 149.6 x 110 x 2.0 |
| 23042210 | Paper (PA) | IT71 | 275 x 222.3 x 3.2 |
| 29530312 | Paper (PA) | OT36 | 128.8 x 82.1 x 2.5 |
| 29531049 | Paper (PA) | IT117 | 220.4 x 171.8 x 2.5 |
| 29532371 | Paper (PA) | IT79 | 254.3 x 197.9 x 3.2 |
| 29536335 | Paper (PA) | IT82 | 267.7 x 207.8 x 2.5 |
| 29536337 | Paper (PA) | IT79 | 254.3 x 197.9 x 3.2 |
Note: We guarantee dimension accuracy for all aftermarket replacements. This is a partial list, contact us for the full catalog.
