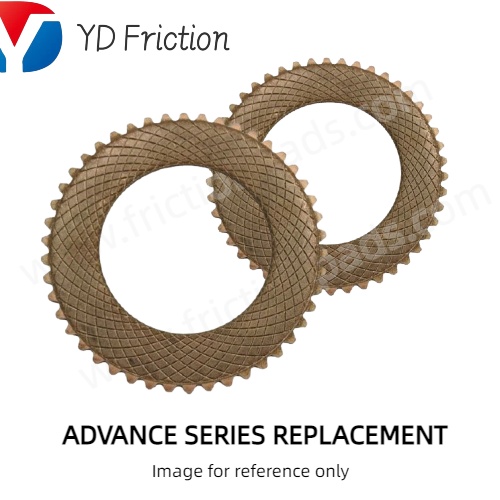

Sintered Bronze Discs for ADVANCE Small Marine Gearboxes (0602A/1602/1201)
Product Overview
Nantong Yida Friction Materials Co., Ltd offers premium aftermarket replacement friction solutions for ADVANCE (Hangzhou Advance / Hangchi) Gearboxes.
This specific kit is engineered to fit the (0602A/1602/1201) marine and industrial transmission systems. Our friction discs are manufactured using high-grade sintered bronze powder, ensuring a stable coefficient of friction and excellent heat dissipation under heavy loads.
Why Choose Yida Replacements?
OEM Match: Strictly produced according to original dimensions (OD, ID, Teeth) for a drop-in fit.
High Durability: Superior wear resistance significantly extends the service life of your gearbox.
Versatile Application: Suitable for marine gearboxes, wheel loaders, and construction machinery.
Specifications for Small Series
| OEM Part No. | Type | Material | Dimensions (mm) | Teeth |
|---|---|---|---|---|
| 0602A-001 | Inner Disc | Sintered Bronze | 128 x 63 x 2 | IT 26 |
| 401-0019 | Inner Disc | Sintered Bronze | 128 x 63 x 3/1.5 | IT 26 |
| 401-0007 | Outer Plate | Steel | 135 x 88 x 3 | OT 52 |
| 1602-0015 | Inner Disc | Sintered Bronze | 128 x 63 x 2 | IT 26 |
| 1201-0019 | Inner Disc | Sintered Bronze | 169.8 x 90.4 x 3 | IT 36 |
| 1201-0007 | Outer Plate | Steel | 179.6 x 116.3 x 3 | OT 50 |
Technical Notes & Installation
Material composition:
Inner Discs (SM): Copper-based sintered metal (Bronze) for high thermal conductivity.
Outer Plates (SI): High-carbon steel with precision flatness control to prevent shudder.
Recommendation: We highly recommend replacing friction discs and mating plates in complete sets to ensure optimal transmission performance.
Global Shipping & Support
We export daily to Southeast Asia, Russia, South America, and the Middle East. Whether you need a single repair kit or a bulk wholesale order, we have the stock to support you.
Ready to Order?
Part Number: 0602A-001,401-0019,401-0007,1602-0015,1201-0019,1201-0007
Condition: New Aftermarket
Stock Status: Available
